Omschrijving

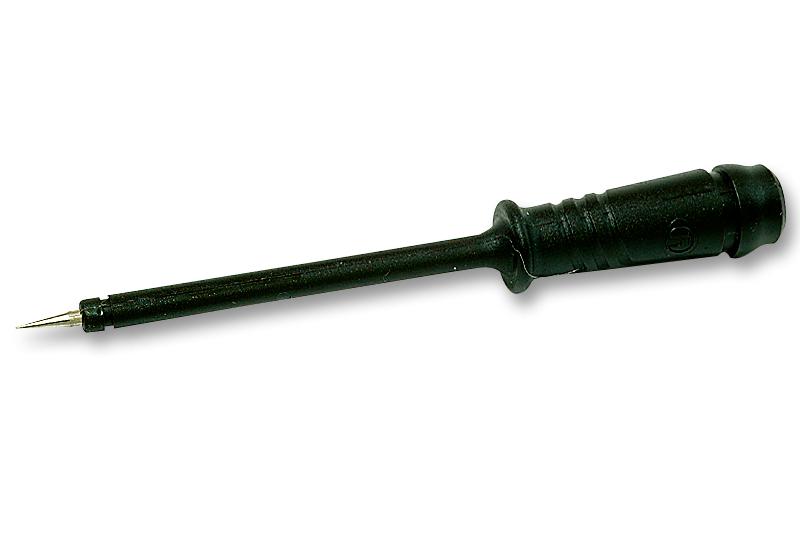

The 973368100 is a 1A 30VAC/60VDC black Test Probe with nickel tip surface and PP housing material. Test tip with shatter-proof insulated sleeve, insulation and oxide layers can be penetrated by the slender stainless steel tip, 4mm diameter brass socket connection.
- 2mm Pin dimension
- Test tip (unsprung) contact
- 50mΩ Contact resistance
- UL94-HB Flammability rating
- 1 A rated current (1)
- PP housing material
- for normal environmental conditions -5°C to +40°C
- without rated measurement category, for other circuits that are not directly connected to mains
