Omschrijving

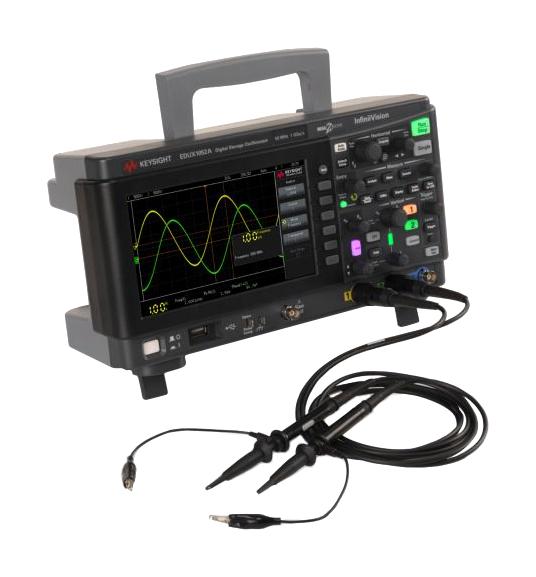

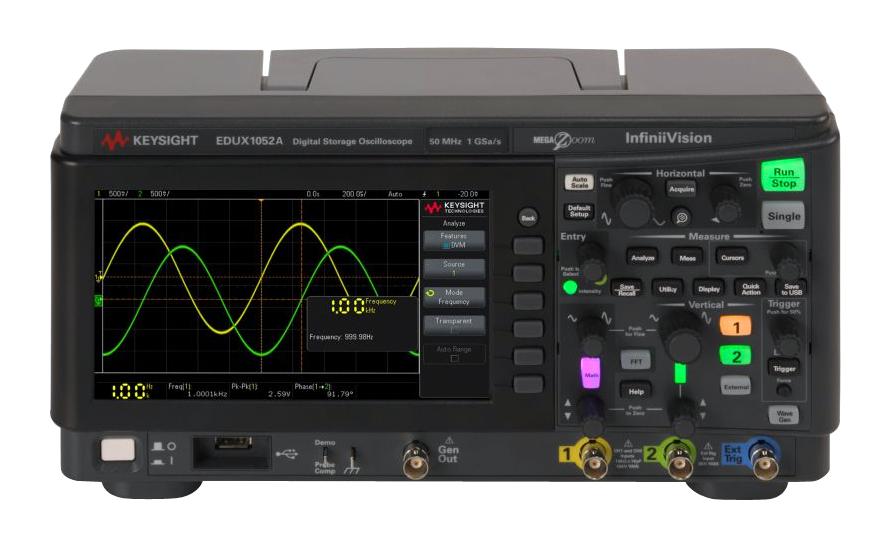

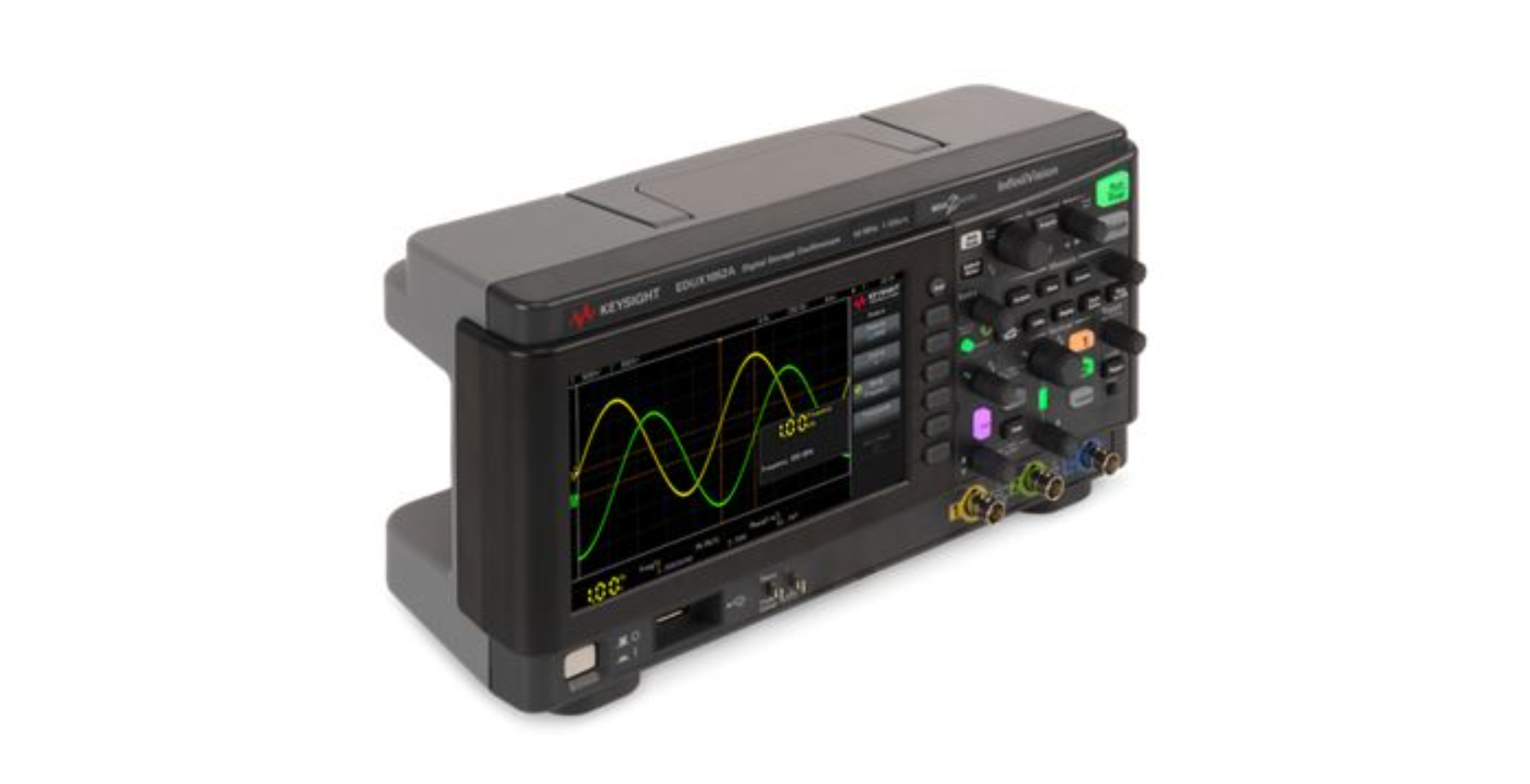

EDUX1052A is an InfiniiVision 1052A 2-channel, 50MHz oscilloscope.
The 1000 X-series is a powerful protocol analyser that enables hardware-based serial communication analysis. The system supports I2C and UART/RS232. The 1000 X-series also has an integrated 3-digit voltmeter
- 1GSa/s sample rate, 200k points
- Make professional measurements, math, FFT, and serial protocol analysis, all standard
- Quickly learn how to use with built-in help and training signals
- More signal detail at 100,000 waveforms/sec update rate
- Capacitive touch screen, industry exclusive zone touch trigger
- Additional serial decode/trigger, gated FFT
- Standard integrated digital voltmeter, frequency counter, built-in training signals
- 7inch TFT LCD WVGA display, USB 2.0 (host and device), LAN connectivity
- ≤ 7ns calculated rise time
Included
Oscilloscope, Standard 3-year warranty (90 days for unserialized accessories), 5-year calibration period with certificate, Standard secure erase, Two N2142A 75MHz 10:1/1:1 switchable passive probes, Built-in help in multiple languages, Power cord.
